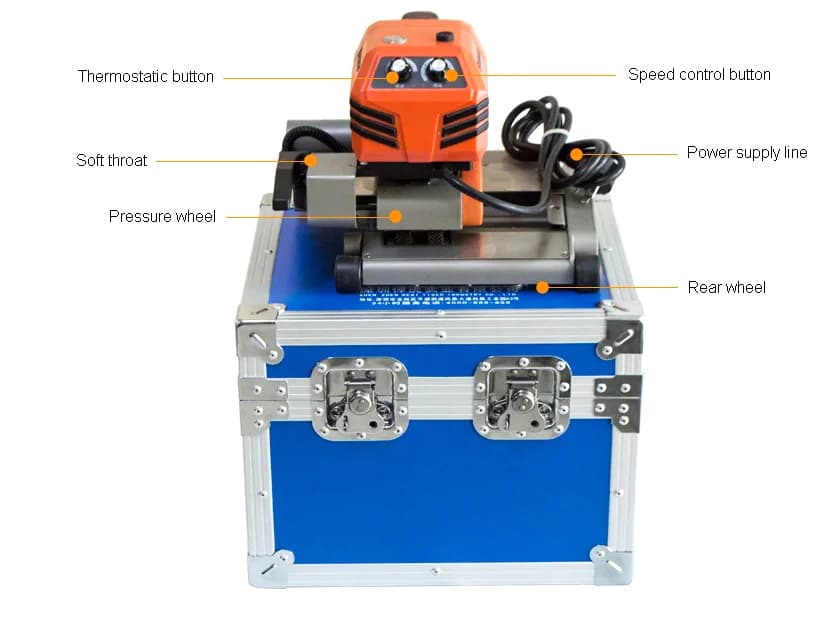

Geomembrane Welding Machine
Application: welding HDPE, LDPE, EVA, PVC, ECB, PP and others.
Introduction Of Geomembrane Welding Machine
Geomembrane Welding Machine is suitable for welding HDPE, LDPE, EVA, PVC, ECB, PP and other thermo plastic materials, which are widely used in waterproofing projects like tunnels, subway, water conservancy, farming, solid waste landfills, chemical mining industry, sewage treatment, roofing and so on.
Product Details Of Geomembrane Welding Machine
1, Large welding power, fast welding speed, and good welding effect
2, This machine has stable performance, convenient operation, high welding efficiency and reliability
3, Widely used in tunnel, subway, water conservancy, breeding, landfills, chemical mining, sewage treatment, roof building and other water-proof and anti-seepage projects.

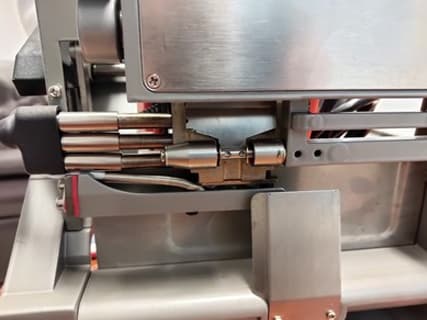

Air duct system
Heat sink
Accelerator pump
MODEL &PARAMETERS
|
Model
|
HH-610
|
HH-615
|
HH-620
|
|
Voltage
|
220V or 110V
|
||
|
Frequency
|
50/60HZ
|
||
|
Power(w)
|
800
|
800
|
1000
|
|
Drive Speed(m/min)
|
0-5.5m/min(adjustable)
|
0-5.5m/min(adjustable)
|
0-5.5m/min(adjustable)
|
|
Heating Temperature
(°C) |
0-450(adjustable)
|
0-450(adjustable)
|
0-450(adjustable)
|
|
Thickness of Welding Material(mm)
|
0.2-2.0
|
0.2-2.0
|
0.2-2.0
|
|
Overlap Width(mm)
|
80-160
|
80-160
|
100-200
|
|
Welding Width(mm)
|
10-15mm*2 , interior cavity 12mm
|
||
|
Seam Strength(%)
|
≥85% base material (tensile resistant in shear direction)
|
||
|
Weight(kg)
|
5.0
|
5.0
|
5.3
|
Related Projects of Geomembrane Welding Machine
Our Pump Type Wet Spraying Machine had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.

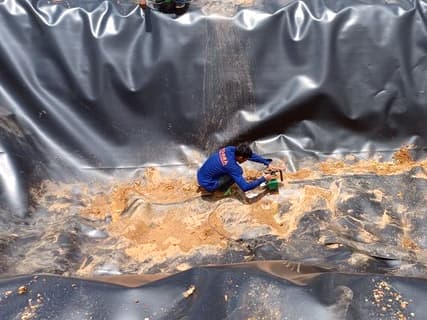

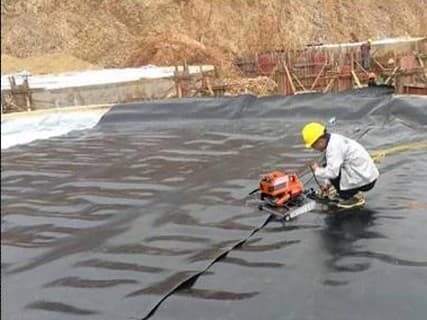

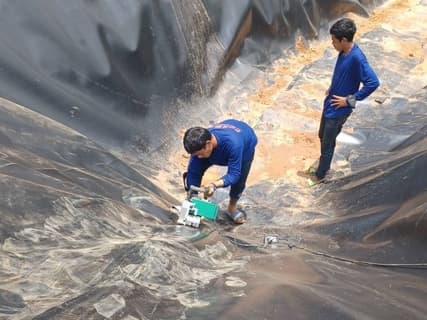

Classic Case of Geomembrane Welding Machine
Classic Case of Geomembrane Welding Machine
Classic Case of Geomembrane Welding Machine
Geomembrane Welding Machine Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Pump Type Wet Spraying Machine are factory-direct sold, which offer you premium quality and better service.
