Rock Drilling Jumbo
Application: It is suitable for bolting construction and tunneling construction of high-speed rail tunnels, expressway tunnels, hydropower station roadways, and mine roadways…

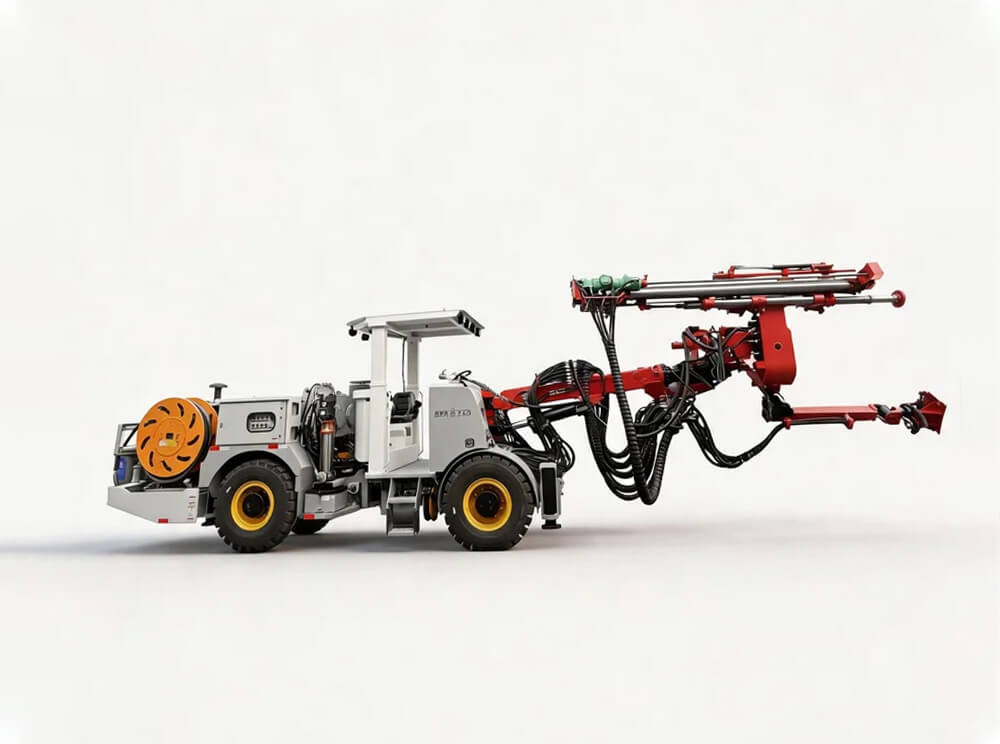

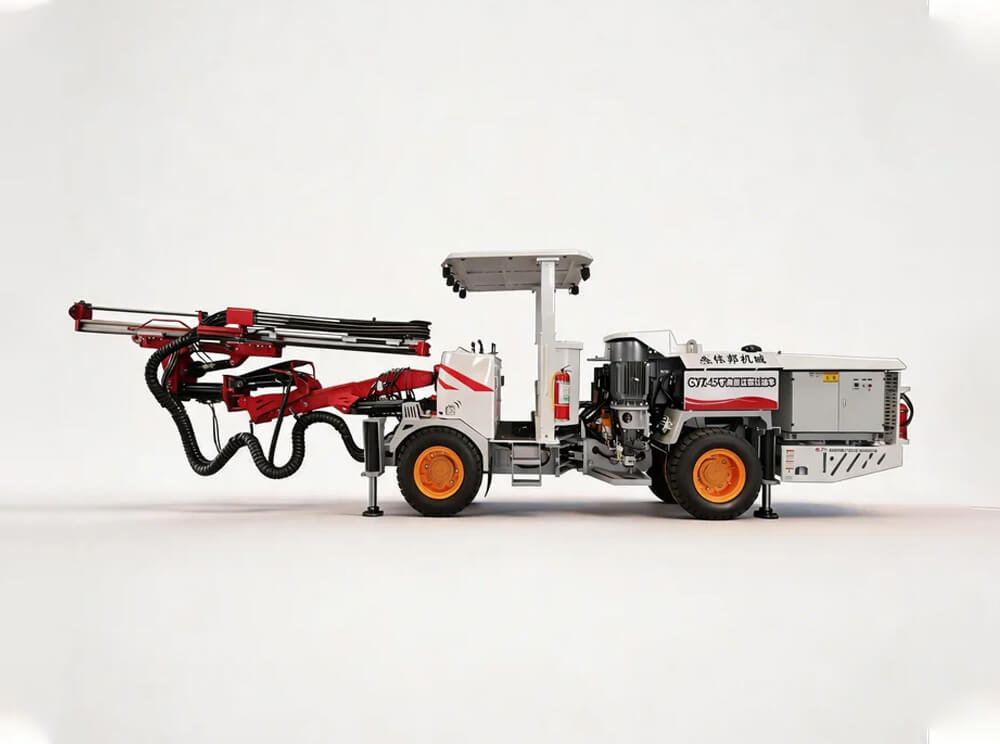

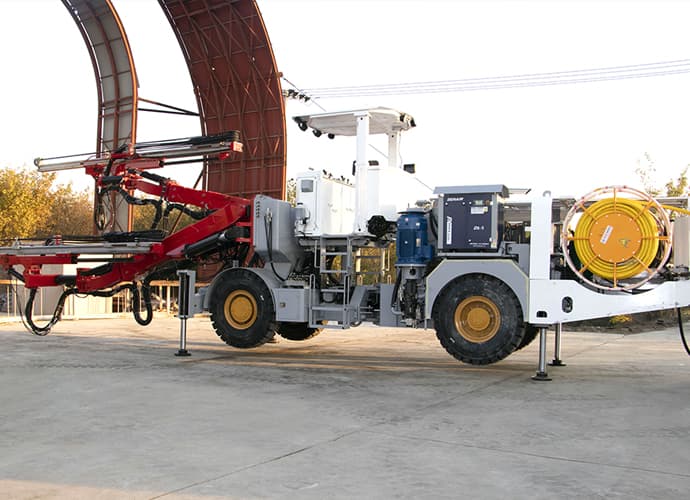

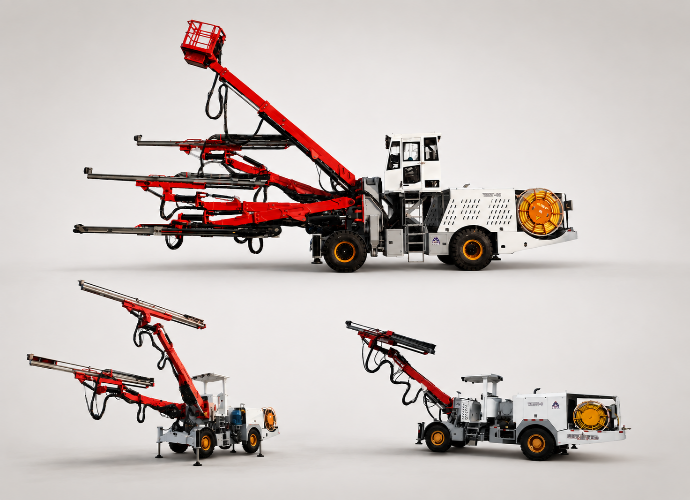

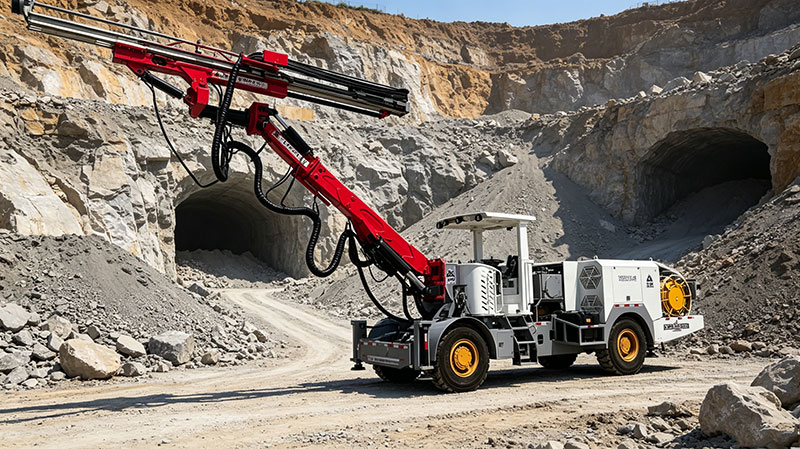

Introduction Of Rock Drilling Jumbo

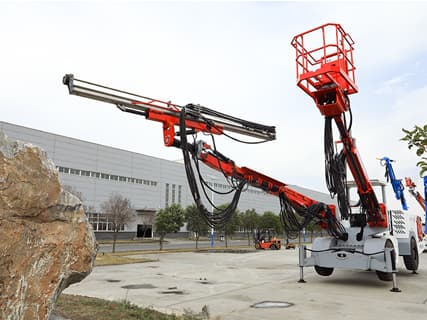

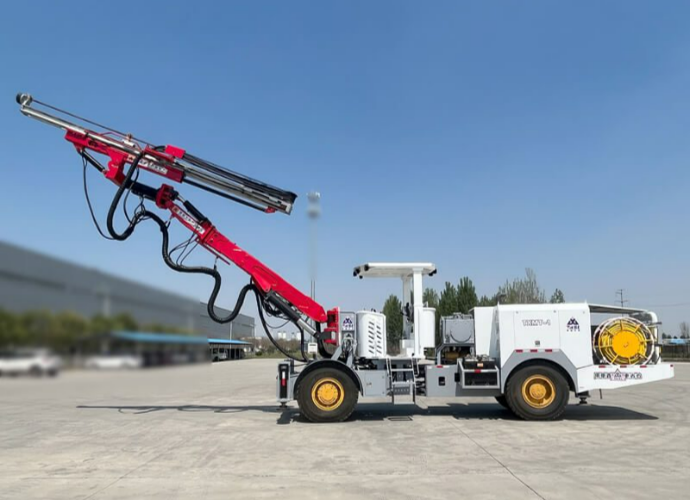

(single boom)

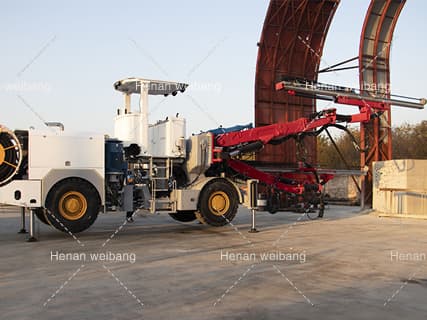

(twin boom)

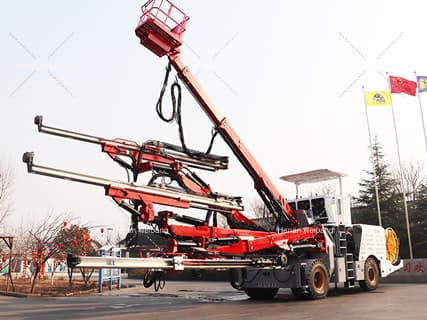

(three boom)

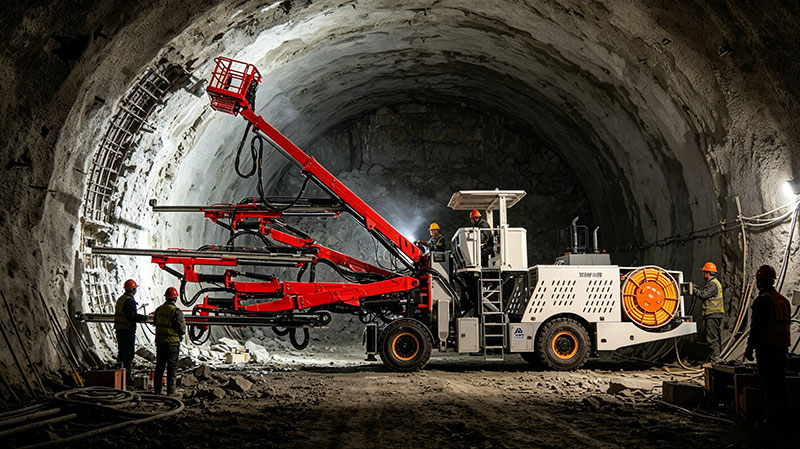

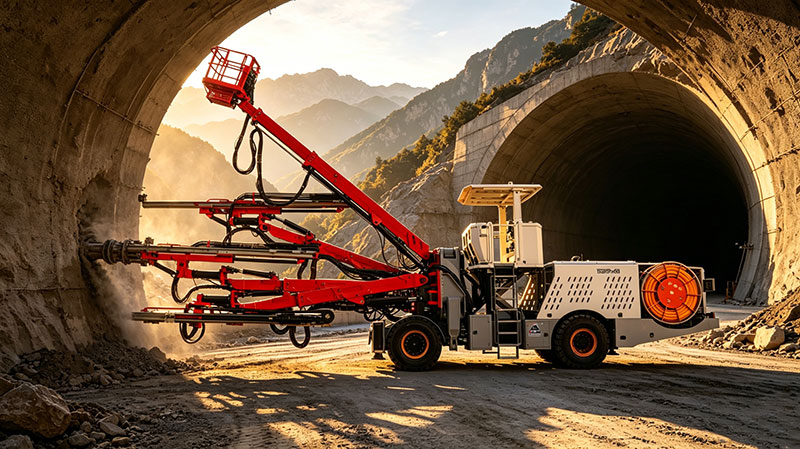

Applications of Rock Drilling Jumbo
- Highway tunnel excavation and support
- High-speed rail and railway tunnel construction
- Hydropower station tunnel and underground powerhouse
- Underground mine drifting and rock drilling
- Rock bolting, anchor drilling, and tunnel support
- Water conservancy and hydropower engineering
Why Choose Our Rock Drilling Jumbo?
- Professional manufacturer with rich experience in tunneling and mining equipment
- Factory direct price, no middleman, cost-effective
- CE, ISO certified, reliable quality
- Customized models, boom, power, and function available
- Strong after-sales service and technical support
- Safe, efficient, and suitable for harsh working environments
Core Advantages of Our Rock Drilling Jumbo
- Secondary Keywords: Underground Rock Drilling Jumbo, Tunnel Drilling Jumbo, Mining Drilling Jumbo
– High Drilling Efficiency & Strong Adaptability: Equipped with imported high-power drilling hammers and optimized hydraulic transmission system, the rock drilling jumbo achieves fast drilling speed and stable hole forming. It adapts to hard rock, medium-hard rock and complex geological layers, with a maximum drilling depth of 6m and a drilling diameter range of 28mm-76mm, meeting diverse construction standards.
– Intelligent & Safe Operation: Adopts humanized cab design with shock absorption and dustproof functions, effectively improving operator comfort. Equipped with automatic positioning, anti-collision protection and emergency stop systems, the underground drilling jumbo minimizes construction safety hazards and realizes standardized, intelligent drilling operation.
– Durable & Low Maintenance Cost: The whole machine adopts high-strength steel structure and wear-resistant accessories, resisting impact and corrosion in harsh underground environments. The modular assembly design simplifies daily maintenance and parts replacement, greatly reducing later operation and maintenance costs and extending equipment service life.
– Energy-Saving & Environmentally Friendly: Optimized power matching system reduces fuel and power consumption by 15%- compared with traditional drilling jumbos. Equipped with professional dust removal devices, it effectively controls construction dust, complies with global environmental protection standards for mining and tunnel construction.
– Flexible & Wide Application: Multiple boom configurations (single/double/triple boom) are optional. The compact body structure is suitable for narrow mine roadways and small-section tunnels, while the high-power model meets the high-intensity drilling demands of large-scale tunnel projects, with strong construction flexibility.

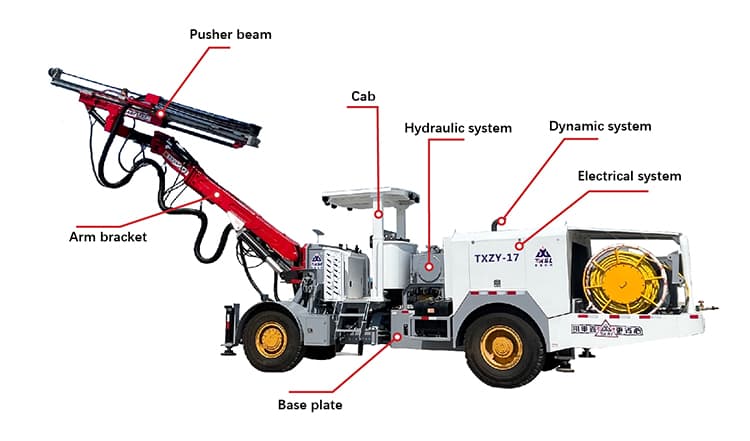

The Structure Of Rock Drilling Jumbo
1.Full hydraulic control system ensures strong power, high reliability, and long service life.
2.Articulated steering design provides small turning radius and excellent passing ability in narrow tunnels.
3.The core hydraulic and electric components are imported famous brands, ensuring stable performance under tough working conditions.
4.Large operating range meets the drilling needs of different tunnel sections.
5.Easy to operate, maintain and repair, reducing construction cost.
6.Safe cab with lifting function improves operator comfort and safety.
MODEL &PARAMETERS
We provide a complete range of Rock Drilling Jumbo models with different configurations, power, drilling ranges, and working functions. All specifications can be customized based on customer requirements.
| Item | Unit | TXZY-11 | TXMT-1 | TXZY-17 | TXZY-18 | |
| Machine parameters | Total weight | kg | 27000 | 25000 | 13300 | 13500 |
| Dimensions | mm | 15300×2580×3700/3100 | 15300×2580×3700/3100 | 12043×1750×3100(2400) | 13154×1750×3119(2419) | |
| Working range (width×height) | m | Anchor construction:19×13 Excavation construction:13×9.3 |
Anchor construction:19×13 Excavation construction:13×9.3 |
Anchor construction:12.2×8.6 Excavation construction:7.7×6.9 |
Anchor construction:14.1×9.5 Excavation construction:7.7×6.9 |
|
| Total installed power | kw | 63 | 63 | 63 | 63 | |
| Max. ground clearance | mm | 320 | 320 | 240 | 284 | |
| Approach/departure angle | ° | 15/15 | 21/20.5 | 18/15 | 18/15 | |
| Chassis parameters | Max. driving speed | km/h | 15 | 15 | 15 | 15 |
| Gradeability | ° | 15 | 18 | 15 | 15 | |
| Turning radius (outside/inside) | m | 8/4.8 | 8.5/5.2 | 4.9/3.1 | 5/3.3 | |
| Frame form/drive form | Articulated/4-wheel drive | |||||
| Axle/Brake System | Wet axle, hydraulic double circuit, parking and service brake | |||||
| Internal combustion engine power | kw | 129 | 129 | 62.5 | 62.5 | |
| Rock drill parameters | Power | kw | 18 | 18 | 18 | 21 |
| Shock frequency | hz | 60 | 47-61 | 47-61 | 55-63 | |
| Drilling efficiency | m/min | 1-2 | 1-2 | 1-2 | 1-2 | |
| Max. Aperture | mm | φ45-φ89 | φ45-φ89 | φ45-φ89 | φ45-φ89 | |
| Robotic arm parameters | Arm frame configuration | / | one arm and one basket | single arm | single arm | single arm |
| Arm frame telescopic stroke | mm | 1600 | 1600 | 1250 | 1250 | |
| Drill arm left and right swing angle | ° | ±45 | ±45 | ±45 | ±38 | |
| Drill boom lift/swing angle | ° | +68/-45 | +68/-45 | +60/-30 | +60/-30 | |
| Propulsion pitch angle | ° | +3/-90 | +3/-90 | +3/-90 | +3/-90 | |
| Propeller flip angle | ° | 360(spiral type) | 360(spiral type) | 360(spiral type) | 360(spiral type) | |
| Propelling Beam Length | mm | 7191/6408/5243 | 7191/6408/5243 | 5243 | 6554 | |
| Drilling depth | mm | 5160/4500/3400 | 5160/4500/3400 | 3400 | 4500 | |
| Thruster compensation length | mm | 1800 | 1800 | 1250 | 1250 | |
| Telescopic stroke of the hanging basket arm | mm | 4000 | / | / | / | |
| Hanging platform arm left and right swing angle | ° | ±45 | / | / | / | |
| Gondola arm lift/swing angle | ° | +60/-35 | / | / | / | |
| Basket rated load | kg | 400 | / | / | / | |
| Electrical System | Main motor power | kw | 55 | 55 | 55 | 55 |
| Voltage | V | 380 | 380 | 380 | 380 | |
| Cable length | m | 100 | 100 | 100 | 100 | |
| Total power | kw | 63 | 63 | 63 | 63 | |
| Air compressor power/efficiency/pressure | / | 4kw/0.5m³/min/8bar | 4kw/0.5m³/min/8bar | 4kw/0.45m³/min/8bar | 4kw/0.45m³/min/8bar | |
| Cable Drum/Cable Length | / | 100m | 100m | 100m | 100m | |
| Other function | Water pump/flow/water pressure | / | Centrifugal/67L/min/15bar | Centrifugal/67L/min/15bar | Centrifugal/67L/min/15bar | Centrifugal/67L/min/15bar |
| Cab lifting stroke | mm | 700 | 700 | 700 | 700 | |
| Alarm function | / | Oil temperature, oil pressure, short circuit | ||||
(Please contact us for more model ¶meters)

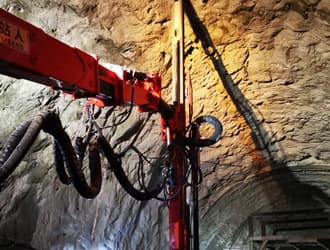

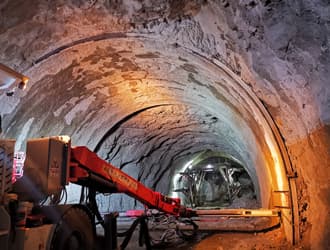

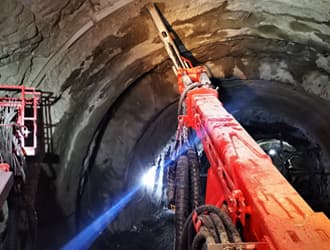

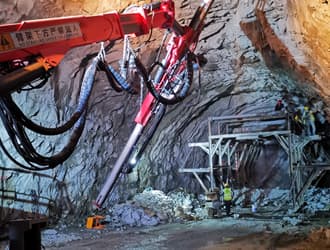

Related Projects of Rock Drilling Jumbo
Classic Case of Rock Drilling Jumbo
Classic Case of Rock Drilling Jumbo
Classic Case of Rock Drilling Jumbo
Classic Case of Rock Drilling Jumbo
FAQ – Frequently Asked Questions
Q：What is a Rock Drilling Jumbo?
A：Rock Drilling Jumbo is a multi-boom hydraulic drilling machine used for tunnel excavation, rock drilling, and bolting support in mining and construction.
Q：What are the types of Rock Drilling Jumbo?
A：We provide single boom, twin boom, and three boom Rock Drilling Jumbos for different tunnel sizes.
Q：What is the drilling depth?
A：The drilling depth can reach 3m–5m according to different propeller configurations.
Q：What is the power of Rock Drilling Jumbo?
A：The main motor power is generally 55kw–63kw, and the diesel engine is optional.
Q：Can you customize the product?
A：Yes, we can customize the boom type, drilling range, power, color, and other functions.
Q：Do you provide after-sales service?
A：Yes, we provide overseas installation guidance, maintenance training, and spare parts supply.
