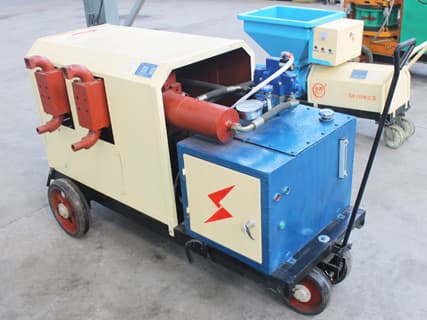

Hydraulic Grouting Pump
Application: Hydraulic grouting pump is specially used to fill voids of rock and soil with material which is easy to solidify through pumping pressure so as to reduce the leakage and consolidate the rocks.
Introduction Of Hydraulic Grouting Pump
The equipment is mainly suitable for tunnel excavation and maintenance as well as the basic treatment of mines, dams, bridges and high-rise buildings; the explosion-proof type is suitable for use in coal mines, chemical mines and other flammable gas environments.
Single-liquid and double-liquid grouting are both workable.
Product Details Of Hydraulic Grouting Pump
1. Easy to operate and maintain, free adjustment within the designed range. relief valve will automatically open and oil cylinder stops working when working pressure exceeds the setting pressure, which protects the machine.
2. Fully hydraulic drive, conversion of hydraulic energy to mechanical energy. explosion-proof motor is equipped. small size, light weight, high efficiency and wide application.
MODEL &PARAMETERS
| Models | FBY-50/70 | FBY-80/45 | FBY-30/120 | ZBY-140 / 7-11G explosion-proof |
| Grouting Capacity (L / min) | 75 | 115 | 45 | 75 |
| Grouting Pressure (MPa) | 0.5-7 | 0.5-4.5 | 0.5-12 | 0.5-7 |
| Grouting Cylinder Inner Diameter × Stroke (mm) | 110×130 | 110×130 | 110×130 | 110×140 |
| Working pressure of hydraulic system (Mpa) | 7 | 4.5 | 12 | 12 |
| Hydraulic System Working Capacity (L / min) | 50 | 80 | 30 | 73 |
| Motor Power (kW) | 11 | 11 | 11 | 11 |
| Hydraulic Oil Tank Volume (m³) | 0.07 | 0.07 | 0.07 | 0.07 |
| Dimensions (L × W × H) (mm) | 1540×850×1050 | 1540×850×1050 | 1500×750×700 | 2118×1013×1158 |
| Weight (kg) | 450 | 450 | 450 | 680 |
| Disclaimer: TXSL company reserves the right to change this specification without further notice. | ||||
