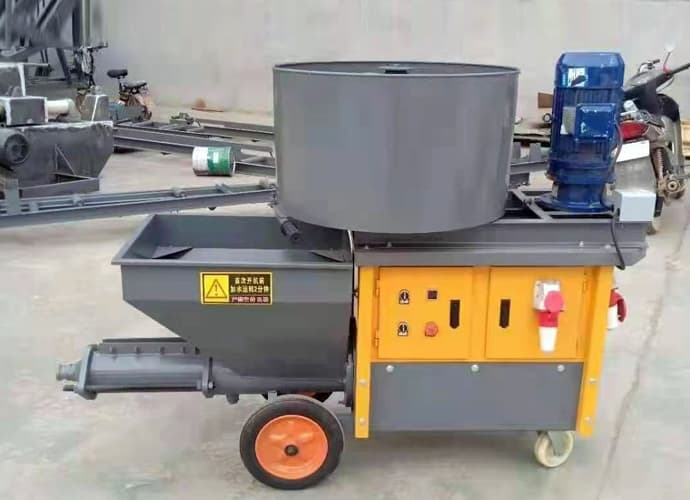

Mixer And Mortar Machine

Application: indoor and outdoor wall spraying, cement mortar grouting, bridge grouting and waterproof surface spraying, fireproof spraying, ceiling spraying, wall spraying, paint spraying, garden spraying

  • Capacity: 7m³/h   Weight: 900kg

  • Max. Grain Size: 15mm

  Introduction Of Mixer And Mortar Machine

Suitable for indoor and outdoor wall spraying, cement mortar grouting, bridge grouting and waterproof surface spraying, fireproof spraying, ceiling spraying, wall spraying, paint spraying, garden spraying, relief paint spraying, sound-absorbing material spraying, waterproof plugging, waterproofing, It is light and convenient for the construction of bridges, dams, hillsides, basements, tunnels, and housing factories.

  The Structure Of Mixer And Mortar Machine

  Product Details Of Mixer And Mortar  Machine

1. Adjust the flow rate to bring out the best spraying effect.
2. In addition to the switch on the electric control box, it is also equipped with a remote control switch for spraying.
3. The connection between the spray gun and the feeding tube can be rotated for easy operation.
4. The construction efficiency is high and the quality is good.
5. Small size, easy to carry on site, and low cost of accessories, simple maintenance.

high pressure pump head

control switch

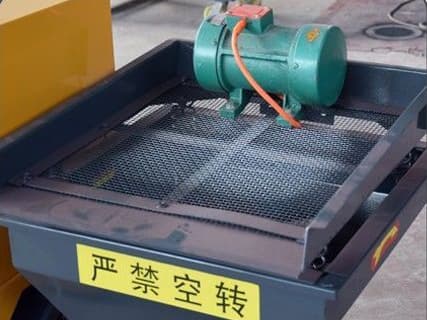

vibration motor

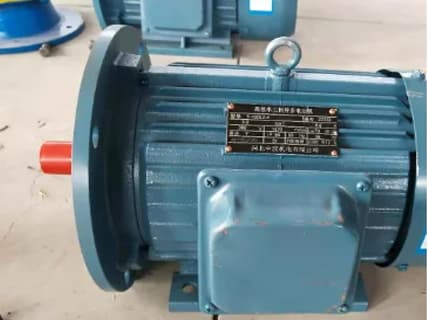

7.5kw large capacity engine

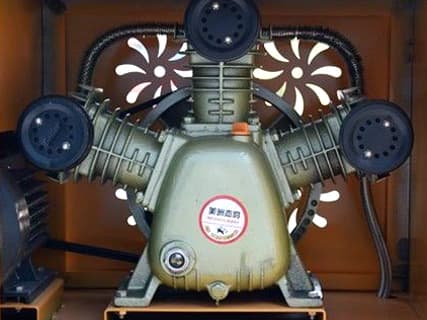

high pressure air pump

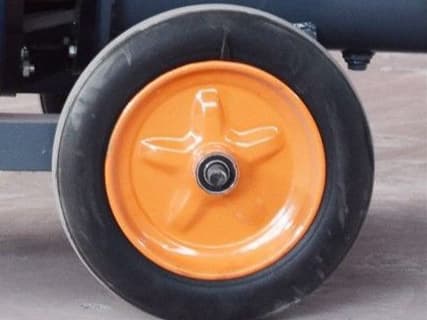

solid tire

  MODEL &PARAMETERS

Delivery pressure 6mpa
Conveying height 30m
Through particle size <6mm
Conveying flow 5m³/h
Water:grey: older than 0.7-1:1:3
The hopper volume 50L
The machine weight 340KG
Form a complete set of air compressor 0.3-0.6m³/h
Auxiliary nozzle Φ32mm
Mixer power 2.2KW
Sprayer  power 7.5KW
Voltage

380V

Related Projects of Mixer And Mortar Machine

Our Mixer And Mortar Spraying Machine had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.

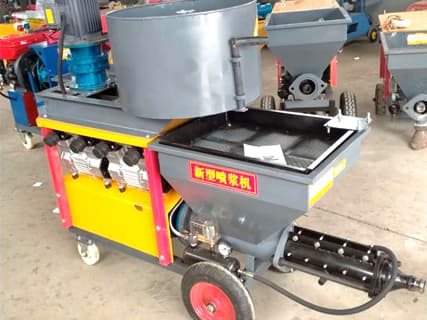

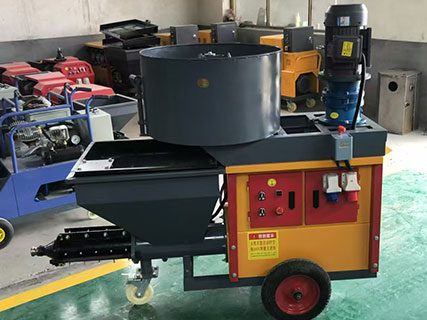

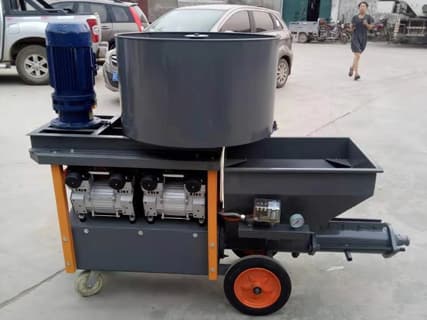

Classic Case of Mixer And Mortar Spraying Machine

Classic Case of Mixer And Mortar Spraying Machine

Classic Case of Mixer And Mortar Spraying Machine

Classic Case of Mixer And Mortar Spraying Machine

Mixer And Mortar Machine Price

Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Mixer And Mortar Spraying Machine are factory-direct sold, which offer you premium quality and better service.
