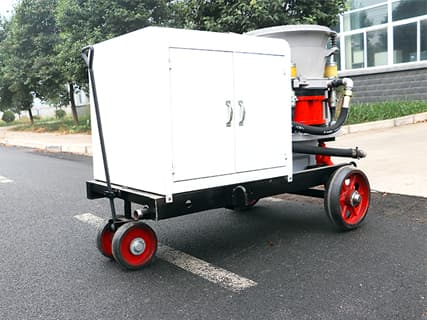

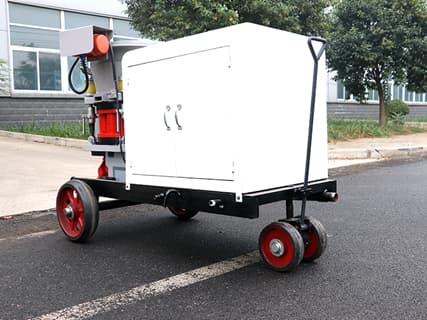

Wet and Dry Shotcrete Machine
Application:slope stabilization and excavation support, mining, tunneling, culverts, underground construction, hydro-engineering.
Introduction Of Wet and Dry Shotcrete Machine
SSP-7 shotcrete machine is the universal machine for dry and wet-mix shotcrete application of slope stabilization and excavation support, mining, tunneling, culverts, underground construction, hydro-engineering.
Product Details Of Wet and Dry Shotcrete Machine
● Accelerator dosing system is designed to convey accelerator independently while accelerator dosage can be accurately measured and adjusted freely by dosing pump.
● Special rubber lining on hydrocyclones can vibrate under air pressure so that concrete will not stick to chamber. Smooth inner of chamber facilitates concrete conveying.
● Stable performance, easy operation, low energy consumption, long service life, good spraying effect and environment friendly.
Discharge port
Clamp
binding clasp
Accelerator system
Vibrating screen
rotor
MODEL &PARAMETERS
| Model | SSP-7 |
| Dry Spraying Capacity | 7m³/h |
| Wet Spraying Capacity | 3-4m³/h |
| Max. Spraying Distance | Vertical 15m Horizontal 30m |
| Concrete Slump | 8-15cm |
| Water Cement Ratio | 0.55-0.65 |
| Max. Grain Size | 15mm |
| Diameter of Convey Hose | Φ57/Φ64mm |
| Working Wind Pressure | 0.3-0.6MPa |
| Air Consumption | 8-12m³/min |
| Feeding Height | 1.3m |
| Power(kW） | 7.5+0.75+0.25 |
| Dimensions(L × W × H) | 1900×1050×1300mm |
| Weight | 900kg |
Product Details Of Wet and Dry Shotcrete Machine
Our Wet and Dry Shotcrete Machine had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.
Classic Case of Wet and Dry Shotcrete Machine
Classic Case of Wet and Dry Shotcrete Machine
Classic Case of Wet and Dry Shotcrete Machine
Classic Case of Wet and Dry Shotcrete Machine
Wet and Dry Shotcrete Machine Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Wet and Dry Shotcrete Machine are factory-direct sold, which offer you premium quality and better service.
