Overview

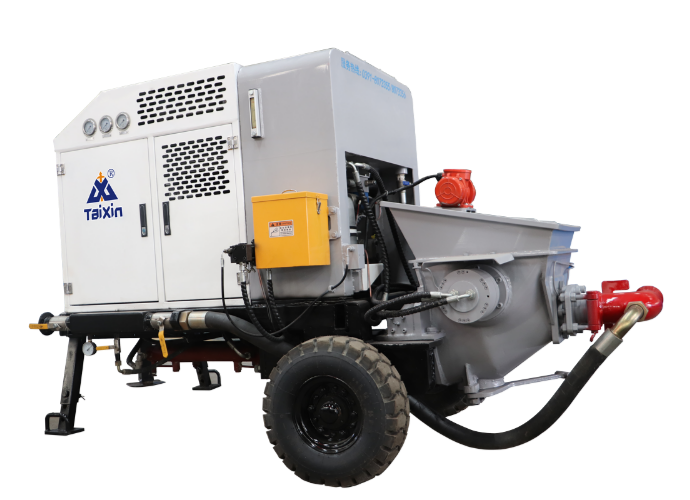

The SPB7-T is an electric hydraulic pump-type wet shotcrete machine designed for wet shotcrete application in slope stabilization and excavation support, mining, tunneling, culvert, subway,slope… The machine adopts hydraulic transmission to pumps the concrete to a certain distance or to the nozzle, and then uses compressed air to spray the concrete onto the supporting surface. At the same time, add an appropriate amount of accelerator to mix with the concrete at the nozzle, and the amount of accelerator is adjusted by the metering pump.
Key Features
Applications
Technical Specifications
| Mortar conveying capacity | 2-7 m³ |
| Mortar conveying pressure | 3 Mpa |
| Maximum vertical conveying distance | 20 m |
| Maximum horizontal conveying distance | 40 m |
| Dispensing valve form | S-pipe valve |
| Max. aggregate size | 15 mm |
| Concrete slump | 12-23 cm |
| Rebound Rate | ≤ 15 % |
| Operating dust concentration | ≤ 10 mg/m³ |
| Concrete conveying cylinder diameter / stroke | Φ 120/500 mm |
| Loading height | 860 mm |
| External dimensions (L × W × H) | 2800 x 1385 x 1640 mm |
| Weight | 1560 kg |
| Hydraulic system pressure | 18 Mpa |
| Motor power | 15 kW |
| Bucket capacity | 0.2 m³ |
| Liquid accelerator dosage | 3-5 % |
| Inner diameter of feeding hose | 57 mm |
| Working wind pressure | 0.5 Mpa |
| Air consumption | ≥ 10 m³/min |

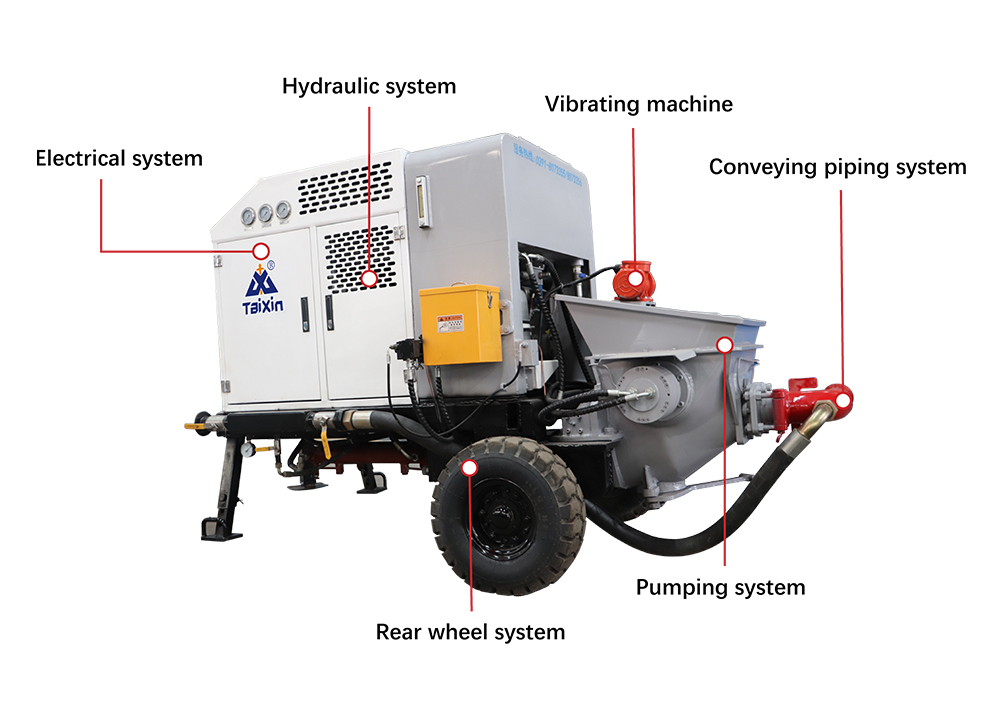

Structure & Key Component

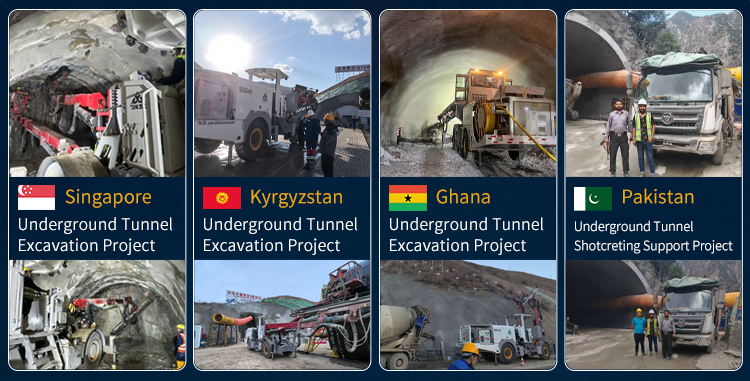

Related Projects
Real Applications
Our machine had been exported to more than 50 countries such as Peru, Chile, Ecuador, Colombia, South Africa, Zambia, Qatar, Pakistan, India, Singapore, Russia, Saudi Arabia, the UAE, Kyrgyzstan and Georgia.
SPB7-T in Action
Real Machine. Real Spraying. Real Performance.
Watch the SPB7-T during a concrete spraying test and see its smooth material conveying, stable spraying performance, and flexible operation in action.
Designed for mining, tunneling, and underground construction, the SPB7-T delivers an adjustable output of 2–7 m³/h for different project requirements.
Price & Quote
Looking for the SPB7-T electric wet shotcrete machine price?
The final price depends on the required spraying capacity, machine configuration, and project requirements. As a direct manufacturer and exporter of wet shotcrete machines in China, HNWB provides factory-direct pricing and customized solutions for mining, tunneling, and underground construction projects.
The SPB7-T features 2–7 m³/h adjustable conveying capacity and reliable hydraulic pumping, making it a practical solution for a wide range of concrete spraying applications.
