Vertical Architect Frame Trolley
Application: It is suitable for full-section and step method construction of roads, railways, and municipal tunnels.
Introduction Of Shotcrete Machine

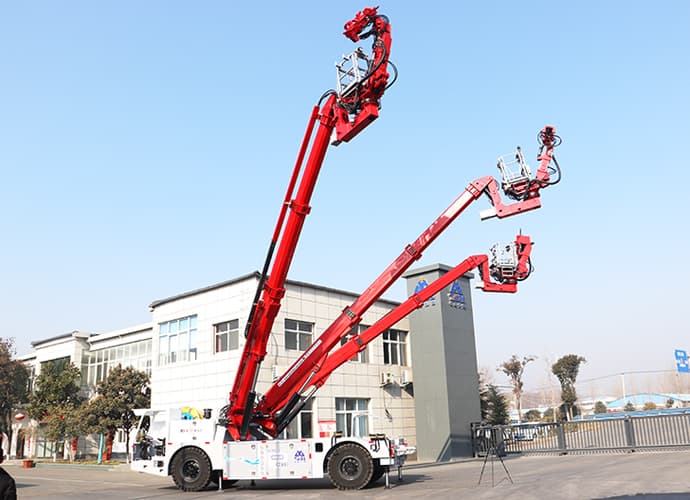

Vertical arch trolley integrates multiple high-altitude operations functions such as arch installation, steel mesh laying, quality inspection, and repair of wind and water pipe installation defects. It is suitable for full-section and step method construction of roads, railways, and municipal tunnels.
LGJTC30315C
LGJTC25212Q
LGJTC30315A
Product Details Of HS Concrete Shotcrete Machine
1. The working range is wide.
2. The equipment adopts four-wheel drive and four-wheel steering.
3. The dual-power working system ensures.
4. The driving direction can be adjusted forward and backward .
5. The operation is convenient, which improves the operating efficiency of the equipment and saves operating time.

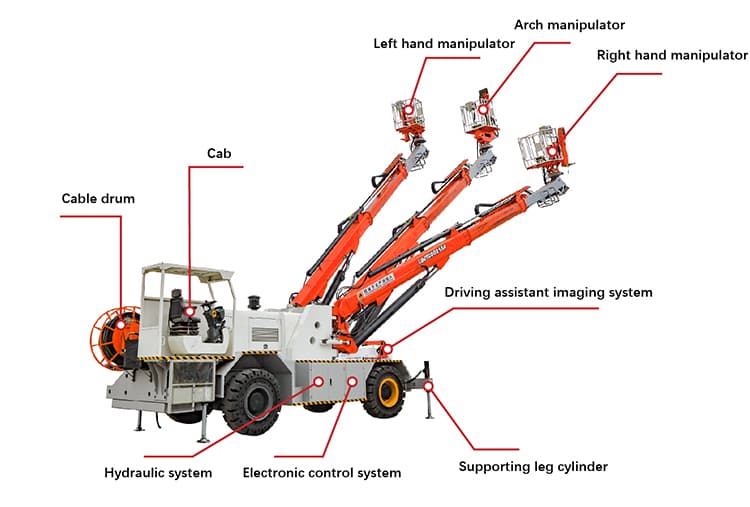

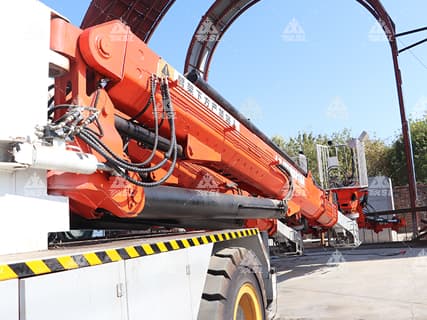

Boom
Cable reel
Hanging basket

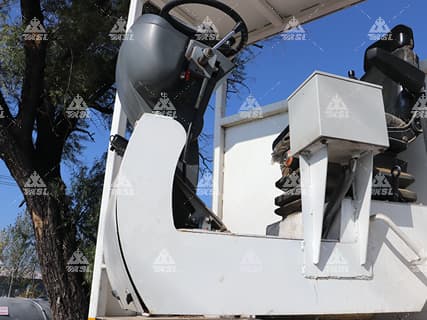

Cab

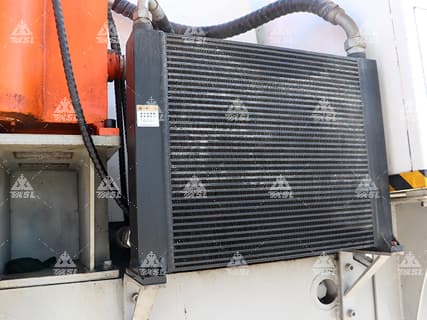

Heat sink

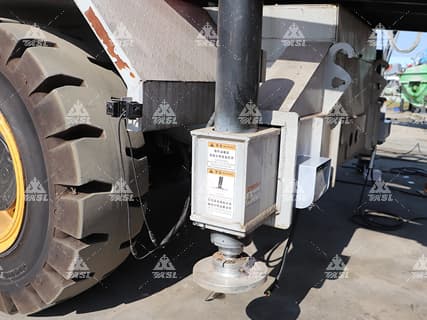

Outrigger
MODEL &PARAMETERS
| Item | Unit | Parameters | |
| Lifting weight | Workpiece weight | kg | Intermediate manipulator: 1100 Side: 300 |
| Operator weight | kg | 700(together with working tools) | |
| Self-weight of manipulator and working frame | kg | Intermediate manipulator: 522 Side: 311 |
|
| Middle arm | The max. distance of arm horizontal expansion | mm | 15550(Without manipulator) |
| Single arm length | mm | 5135 | |
| Number of arm sections | / | 3 | |
| Arm coincidence length | mm | 1390 | |
| Elevation angle | ° | -15.5~56 | |
| Swing angle | ° | -30~30 | |
| Side arm | Swing angle | ° | -5~35 |
| Intermediate manipulator | Arm length | mm | 1940 |
| Elevation angle of working frame | ° | -15.5~56 | |
| Grab elevation Angle | ° | 0-140 | |
| Swing angle | ° | -20~20 | |
| Horizontal rotation | ° | -180~180 | |
| Side manipulator | Arm extended horizontal length | mm | / |
| Arm left and right swing angle | ° | 0-100 | |
| Chassis | Max. driving speed | Km/h | 24.3(Friction coefficient: 0.03) |
| Max. grade | ° | 20 | |
| Bridge distance | mm | 4200 | |
| Turning radius | mm | 6630 | |
| Work basket | Length×Width×Height | mm | 800×890×1150 |
| Complete machine | Total weight | t | ≤32 |
| Length×Width×Height | mm | 14200×2760×3260 | |
| Min. ground clearance | mm | 420 | |
| Through the radius | mm | 8060 | |
(Please contact us for more model ¶meters)
Vertical Architect Frame Trolley Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Vertical Architect Frame Trolley are factory-direct sold, which offer you premium quality and better service.
