Wet Shotcrete Machine HS Series
Application: It is dustless, suitable for using in tunnels, mine, bridge, highway, subway, culvert, bridge, highway, subway, culvert,engineering and hydropower projects

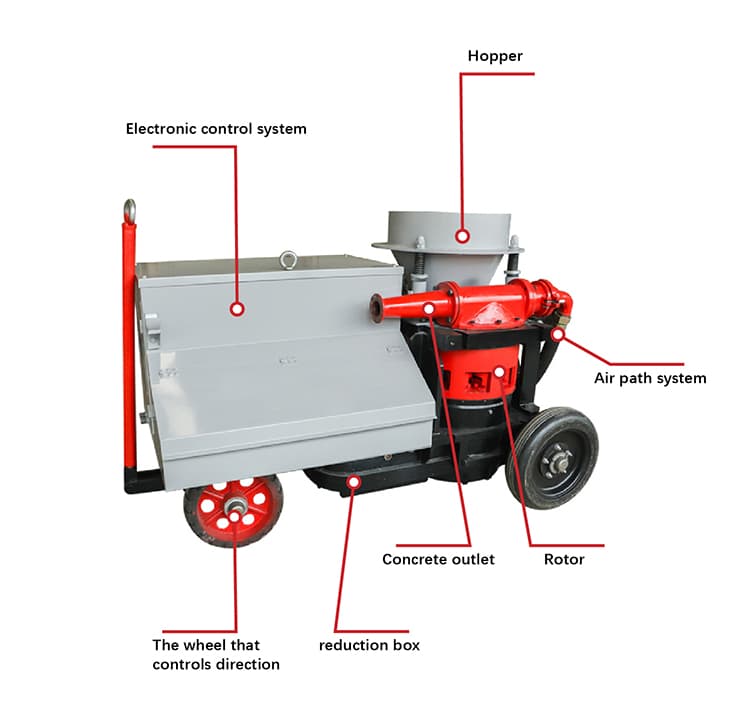

Introduction Of Wet Shotcrete Machine HS Series
HS700 wet mix shotcrete machine is a new generation of wet-mix concrete spraying machine developed by Weibang company and Germany ISAI company. The wet shotcrete machine on the principle of rotor-piston cam feeding mechanism is at the world leading level.
High adaption to materials, no matter what ratio of water, sand and cement, HS700 will adapt to it easily. No plugging, users will no longer to worry about plugging during spraying.
Product Details Of Wet Shotcrete Machine HS Series
1.Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to the concrete.
2.Synchronously radial feeding of three material chambers leads to rarefied flow, flowing continuity, no plugging, small recoil force of spray nozzle, low rebound, smooth spraying surface.
3.Liquid accelerator system allows accurate dosing and uniform mixing
Accelerator Pump

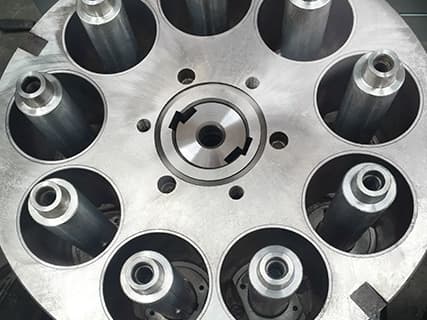

Rotor System

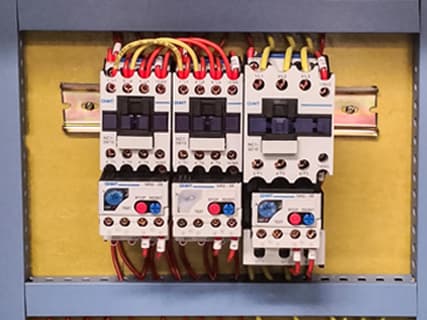

Chint Electronic Component
Pressure Meter

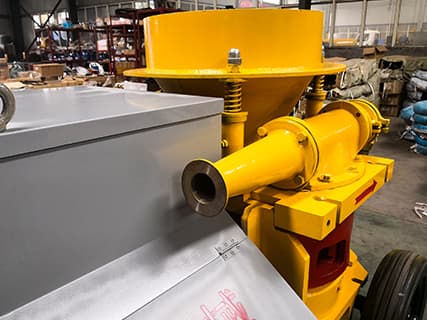

Durable Spray Head
Hopper
MODEL &PARAMETERS
| Technical Parameters | HS-700 | |
| Spaying Capacity(m³/h) | 7 | |
| Max. Grain Size(mm) | 15 | |
| Group Aggregate Fineness Modulus | ≥2.5 | |
| Liquid Accelerator Dosage(%) | 0-7 | |
| Conveying Hose Diameter(mm) | 57 | |
| Concrete Slump(cm) | 10-20 | |
| System Air Pressure(MPa) | ≥0.5 | |
| Working Air Pressure(MPa) | 0.4-0.6 | |
| Air Consumption(m³/min) | ≥12 | |
| Maximum Conveying Distance | Horizontal(m) | 30 |
| Vertical(m) | 20 | |
| Machine Dust(mg/m³) | <10 | |
| Rebound(under standard process conditions)(%) | Average≤20 | |
| Main Motor Power(kw) | 7.5 | |
| Dimensions(mm) | 2070×1000×1200 | |
| Weight(kg) | 1400 | |
Related Projects of Wet Shotcrete Machine
1.Forced feeding by the piston completely avoiding material sticking in rotor material chambers, high adaptation to the concrete.
2.Synchronously radial feeding of three material chambers leads to rarefied flow, flowing continuity, no plugging, small recoil force of spray nozzle, low rebound, smooth spraying surface.
3.Liquid accelerator system allows accurate dosing and uniform mixing
Classic Case of Wet Shotcrete Machine
Classic Case of Wet Shotcrete Machine
Classic Case of Wet Shotcrete Machine
Classic Case of Wet Shotcrete Machine
Wet Shotcrete Machine Price
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Wet Shotcrete Machine are factory-direct sold, which offer you premium quality and better service.
