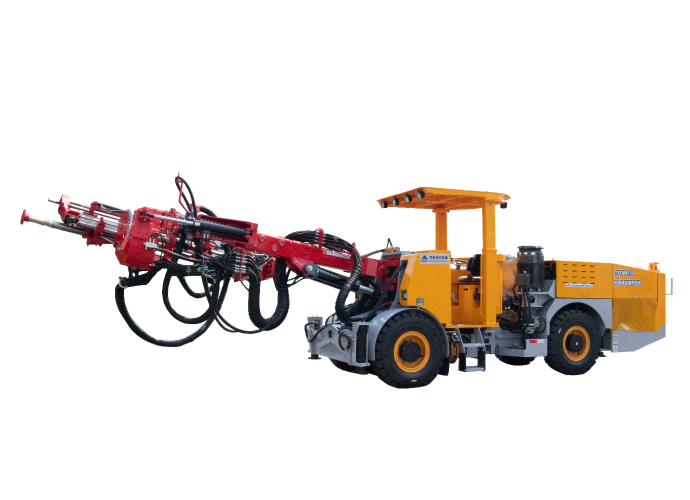

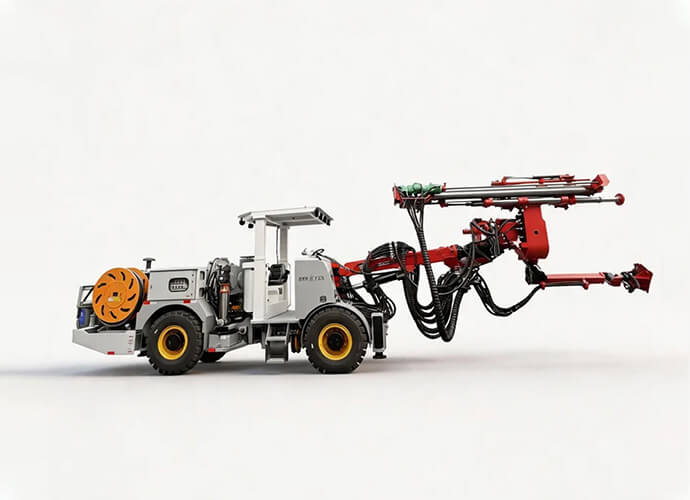

CYTM41/2 Mine Anchor Drilling Vehicle

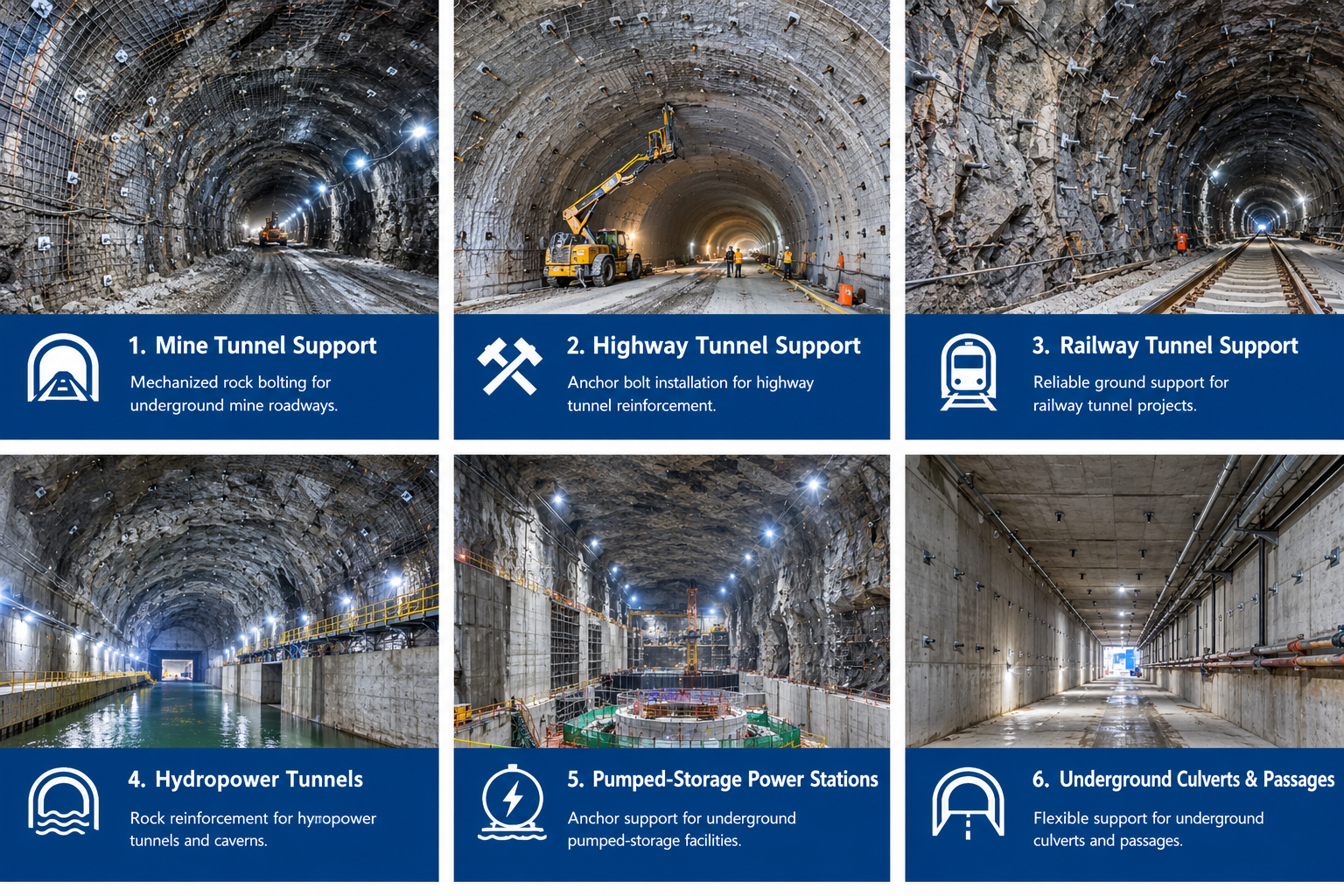

Application: It is suitable for anchor support work in mine tunnels, highway and railway tunnels, water conservancy and hydropower and pumped storage power stations.

  • Working range: 3.7×3.7-5.5x6m

  • Engine Power: 66.2 Kw

Whatsapp: +86-15937117592

  Introduction Of CYTM41/2 Mining Anchor Drilling Vehicle

CYTM41/2 mining hydraulic anchor drilling jumbo is suitable for anchor support work in mine tunnels, highway and railway tunnels, water conservancy and hydropower and pumped storage power stations. The anchor trolley can be customized to choose special pipe seam type, resin type or pipe seam and resin mixed type according to the needs of anchor operation. One machine can realize hanging nets, drilling holes, blowing anchoring agents, installing anchors, and locking nuts, realizing the full mechanization of all processes in anchor support work.

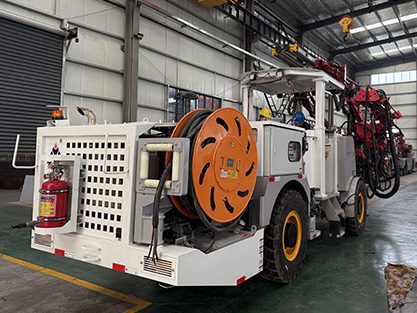

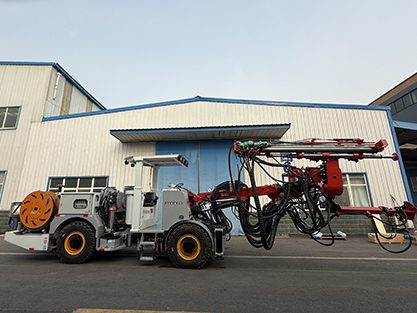

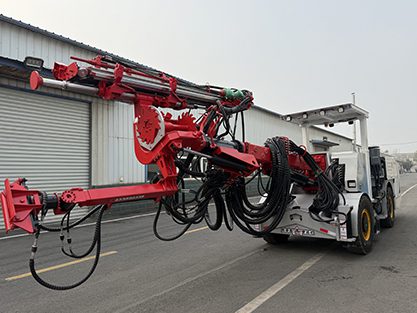

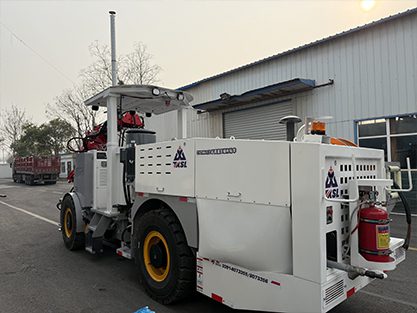

  The Details Of CYTM41/2 Mining Anchor Drilling Vehicle

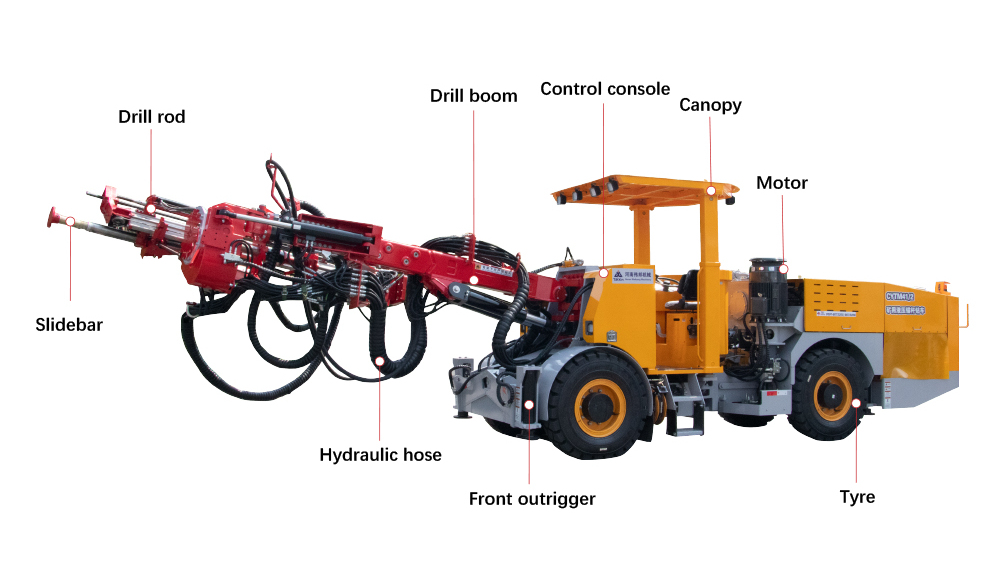

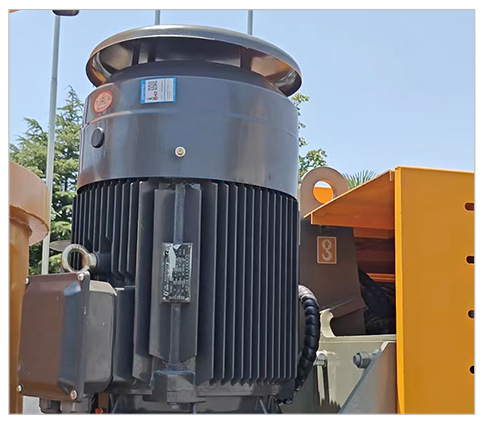

1. Equipped with Yuchai four-cylinder four-stage diesel engine + Shantui torque converter and gearbox.

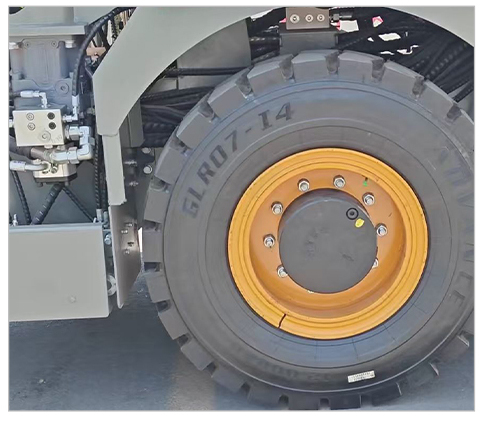

2. Articulated frame, flexible turning, wet front and rear axles, four-wheel drive.

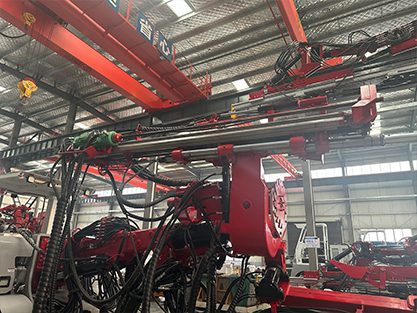

3. Adopting three-station propulsion beam, equipped with anchor storage bin, drilling anchor holes, conveying medicine rolls, and installing anchors are all mechanized.
4. Optional net hanging module can complete the whole set of processes such as drilling, net hanging and anchor installation.

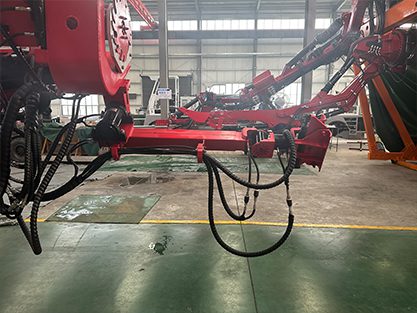

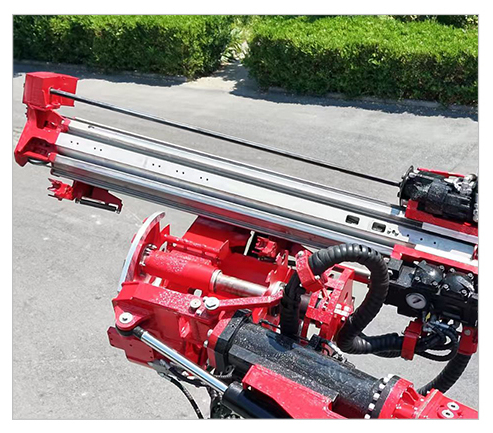

5. Adopting full hydraulic control single drill arm, the propulsion beam can be turned 360°, and can drill upward and downward holes.
6. Hydraulically controlled lifting cab, suitable for short lane passability.

  MODEL &PARAMETERS

ltem  Unit  Item Unit
Machine parameters Dimensions mm 10981x2088x2630
Machine Weight t 16
Working range m 3.7×3.7-5.5×6
Engine power Kw 66.2
Work method / Electric for construction, dieselforemergency
Chassis parameters Grade ability ° 18
Steering angle ° ±38
Approach angle/departure angle ° 16/20
Max. driving speed km/h 13.5
Turning radius (outside/inside) mm 7200
Min. ground clearance mm 300
Rock drilling parameters Rock drills number / 2
lmpact power Kw 9.8
Max. torque Nm 482
Drilling diameter mm 32~64
Propulsion beam length mm 3400
Drill rod length mm 2700
Drilling depth mm 2400
Arm parameters Propulsion beam compensation length mm 500
Propulsion beam flip angle ° ±180
Mlax. telescopic stroke of big am mm 1200
Arm pitch angle ° -30~55
Arm swing angle ° ±35
Electrical parameters Installed power Kw 55+4+4
Voltage V 380
Cable length m 70
Water pump parameters Water pump flow rate m/h 4
Water pump pressure bar 16
Water pump power Kw 4
Air compressor parameters Capacity m/min 0.7
Air pressure bar 8
Air compressor power Kw 4

(Please contact us for more model &parameters)
