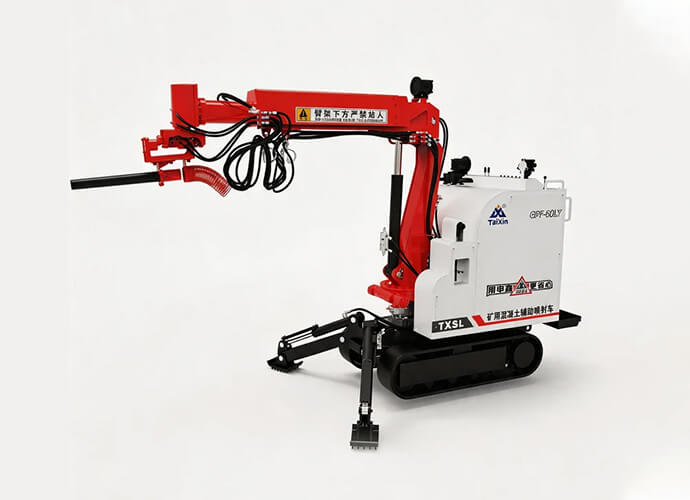

CPF-60LY Mine Auxiliary Shotcrete Truck

Application: The spraying manipulator is mainly used in coal tunnels, semi-coal tunnels, and all-rock tunnels in coal mines to replace manual spraying operations and meet the requirements of the spraying process.

  • Adapt to tunnel section: 16-60m²

  • Rated power: 11kw

Whatsapp: +86-15937117592

  Introduction Of CPF-60LY Mine Auxiliary Shotcrete Truck

The mine auxiliary shotcrete truck is a concrete spraying machine designed and developed by our company for the mechanization and intelligentization needs of underground coal mine construction. The spraying manipulator is mainly used in coal tunnels, semi-coal tunnels, and all-rock tunnels in coal mines to replace manual spraying operations and meet the requirements of the spraying process. The whole machine is small, flexible, durable, and has strong adaptability. It can be used in tunnels that large-scale spraying units cannot enter, realizing mechanized spraying operations and reducing the work intensity of workers.

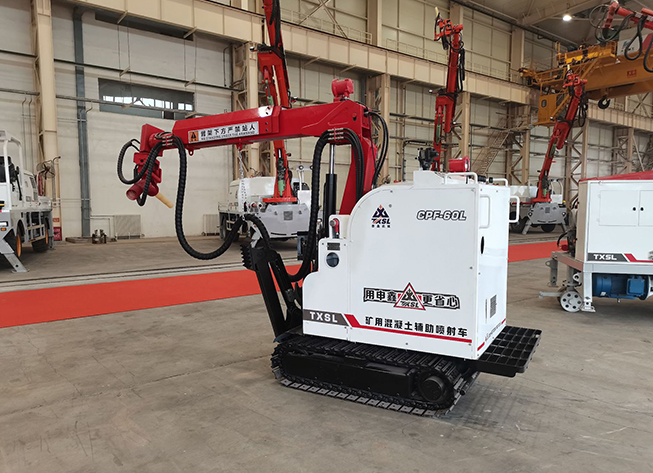

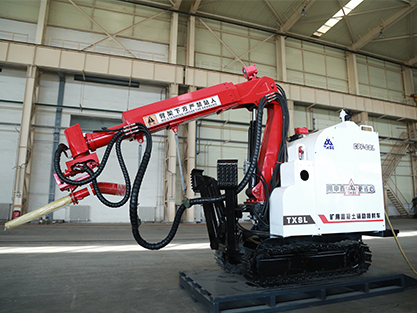

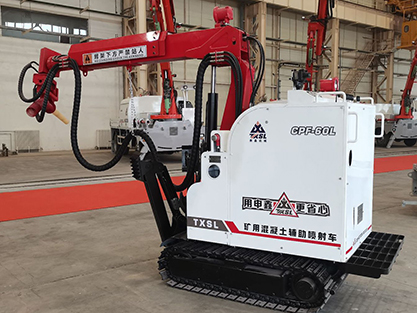

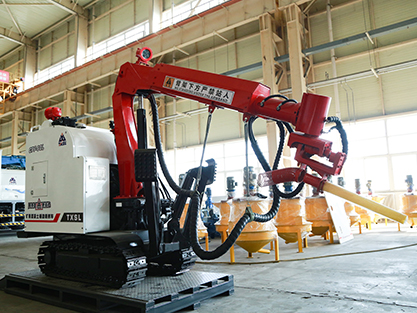

CPF-60LY Mine Auxiliary Shotcrete Truck

CPF-60LY Mine Auxiliary Shotcrete Truck

CPF-60LY Mine Auxiliary Shotcrete Truck

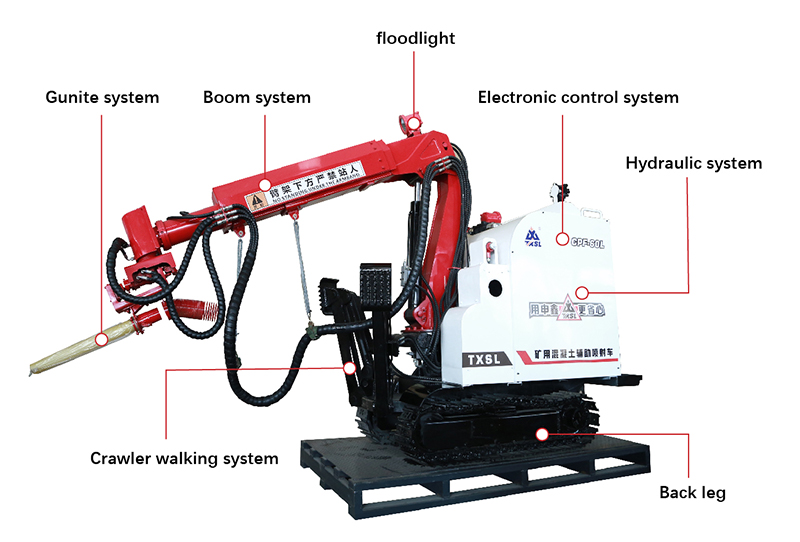

  The Structure Of CPF-60LY Mine Auxiliary Shotcrete Truck

  Product Details Of CPF-60LY Mine Auxiliary Shotcrete Truck

  • 1. The volume of spraying is much higher than that of manual spraying, which improves labor efficiency and saves construction time.

  • 2. A rocker-type remote control can be selected, which is sensitive to operation and can be remotely controlled to reduce the labor intensity of the operator

  • 3. The hydraulic system for getting off the car is responsible for walking, and the hydraulic system for getting on the car is responsible for spraying. The actions of getting on and off the car are manually switched to prevent misoperation.

  • 4. The motor, electric proportional multi-way valve, remote control receiver and remote control used in this equipment all meet the requirements of coal safety explosion-proof.

  • 5. This equipment adopts a crawler chassis, which improves the stability of the equipment, has a large climbing ability, a small turning radius and good flexibility.

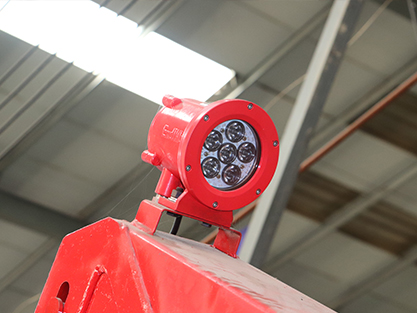

Boom lighting

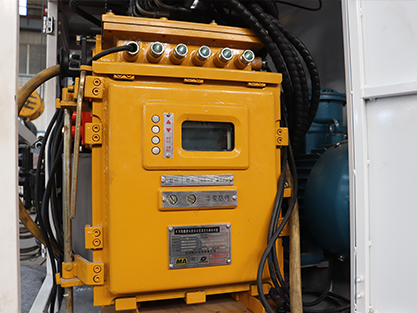

Electrical system

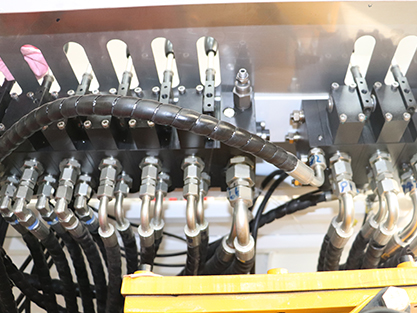

Hydraulic system

  MODEL &PARAMETERS

Basic performance Unit Parameter
Dimensions Adapt to tunnel section m2  16-60
Whole length mm  3300
Whole width mm  1100
Whole height mm  2370
Max.working height mm  8000
Max.working width mm  13000
Steady width mm  2094
Work arm Noise power level dB(A)  ≤95
Starting current  A  63/36.5
Working pressure  MPa  16
Working flow  L/min  39.7
Telescopic stroke  mm  2000
Pitch Angle  °  -60~+60°
Working pressure MPa  16
Working flow   L/min  19.85
Traveling mechanism Traveling speed  m/min  ≤36.7
Gradeability °  ≤30°
Ground specific voltage  MPa  0.035
Turning Radius  mm  770
Working pressure MPa  16
Hydraulic pump station Working flow   L/min  39.7
Electric motor Model  /  YBK3-160M-4
Rated voltage  V  660/1140
Rated current  A  12.7/7.3
Rated power  Kw  11
Weight  Kg  2540

Note:
1.Pictures and parameters are for reference only,and the design may change without prior notice.
2.The fifinal interpretation right of technical parameters belongs to our company.
