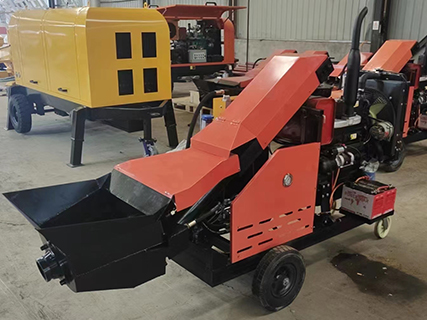

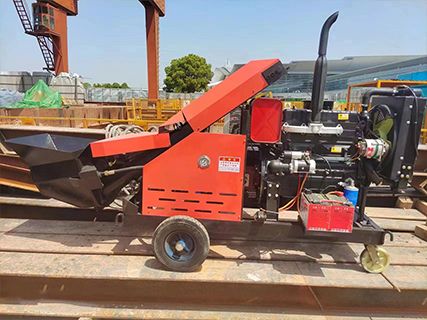

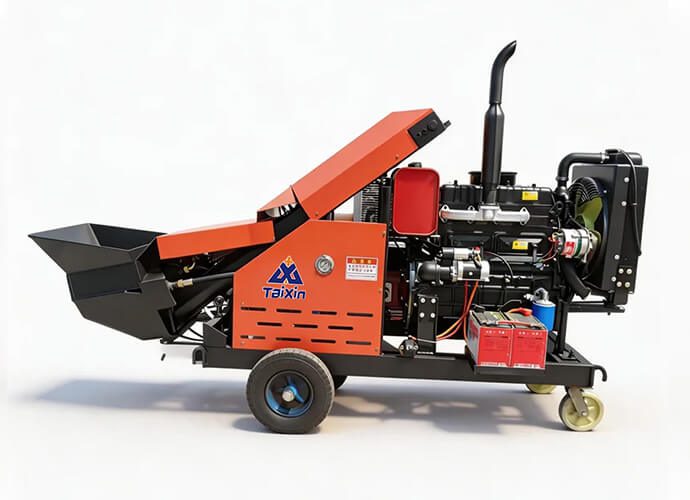

Vertical Small Concrete Pump
Application: Vertical small concrete pump is widely used for the constuction of civil architecture
Introduction Of Vertical Small Concrete Pump
Vertical small concrete pump is widely used for the constuction of civil architecture. It is used for the transportation of fine stone concrete on building floors, the secondary structure pouring of building floor groups, the pouring of indoor beams and columns; the construction of railway and highway tunnels, diversion tunnels, culverts, mines and other caves, including Water conservancy projects, hydropower projects, slope support, underground construction operations and foundation filling projects, etc.

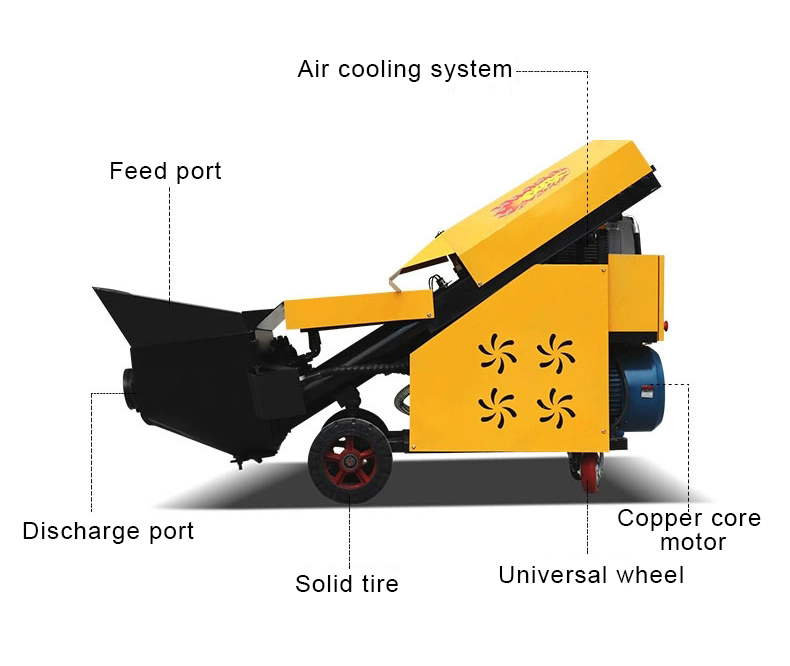

The Structure Of Vertical Small Concrete Pump
Vertical small concrete pump is the newest products produced by our company, it is the most suitable for use in four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need the concrete mixer at the scene.

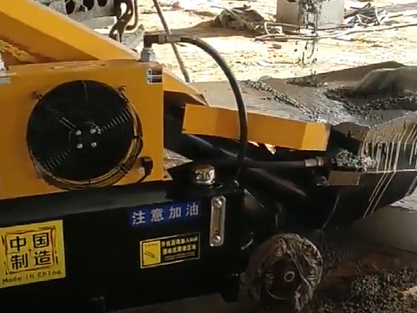

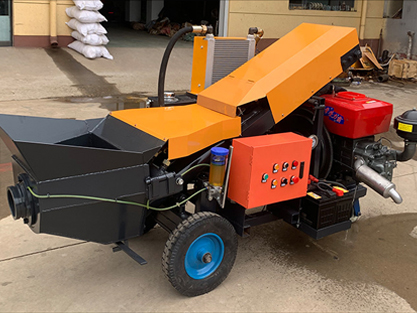

Product Details Of Vertical Small Concrete Pump
1) Wireless remote control, high output efficiency, high performance, fast speed;
2) Intelligent design, high efficiency and simple operation;
3) The product is small in size, easy to move, and effectively solves the flexibility in the pouring process;
4) High configuration, using well-known domestic motors and other accessories, easy maintenance and long service life;
5) Powerful performance, using the latest hydraulic valve machine, strong pressure and superior function.

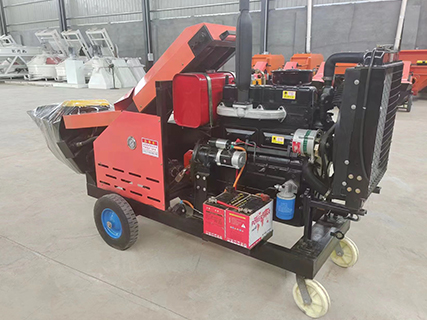

Diesel Engine
Hydraulic pump
Hydraulic Oil Pipe
PLC
MODEL &PARAMETERS
| Items | WBJZ30A (Diesel ) | WBJZ40A (Diesel ) | WBJZ30B (Electric) | WBJZ40B (Electric) |
| Max. theo. concrete output(L./H)(M3/h) | 30 | 40 | 30 | 40 |
| Mixer rated feed capacity(m3) | 0.56 | 0.56 | 0.56 | 0.56 |
| Mixer rated discharge capacity(m3) | 0.35 | 0.45 | 0.35 | 0.45 |
| Max. pumping pressure(H./L.)(MPa) | 10 | 10 | 10 | 10 |
| Distribution valve type | S Valve | S Valve | S Valve | S Valve |
| Winding motor power(KW) | Hydraulic motor | Hydraulic motor | 5.5 | 5.5 |
| Stir the motor power(KW) | Hydraulic motor | Hydraulic motor | 4.5 | 4.5 |
Product Details Of Vertical Small Concrete Pump
Our Vertical small concrete pump had been exported to more than 200 countries including South Africa, India, Philippine, Malaysia, America, Germany, Pakistan, etc… The following is part of projects. Click More Projects for details.

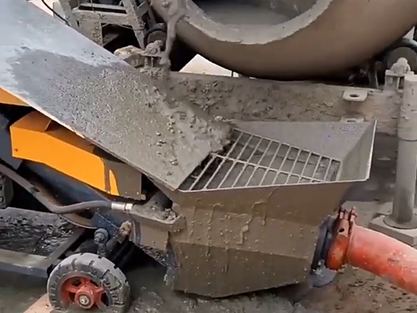

Classic Case of Concrete Pump With Mixer
Classic Case of Concrete Pump With Mixer
Classic Case of Concrete Pump With Mixer
The Price Of Vertical Small Concrete Pump
Specific price is determined by many factors, such as capacity, models, etc. As the advanced manufacturer and exporter in china, our Vertical Small Concrete Pump are factory-direct sold, which offer you premium quality and better service.
